Description
- Frame
-
OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel
- Fork
-
Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt-X axle, 160 mm travel
- Shock
-
Fox Performance Elite Float X, 2-position damper, 205mm x 65mm
- *Wheel front
-
Size: S
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5″ - Wheel rear
-
Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5″
- Skewer rear
- *Tyre
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
Bontrager TLR
- Max tyre size
- Frame: 27.5×2.60″, Fork: See manufacturer
- Battery
-
Bosch PowerTube 800 Wh, smart system
- Charger
-
Bosch standard 4A, 110 V, smart system

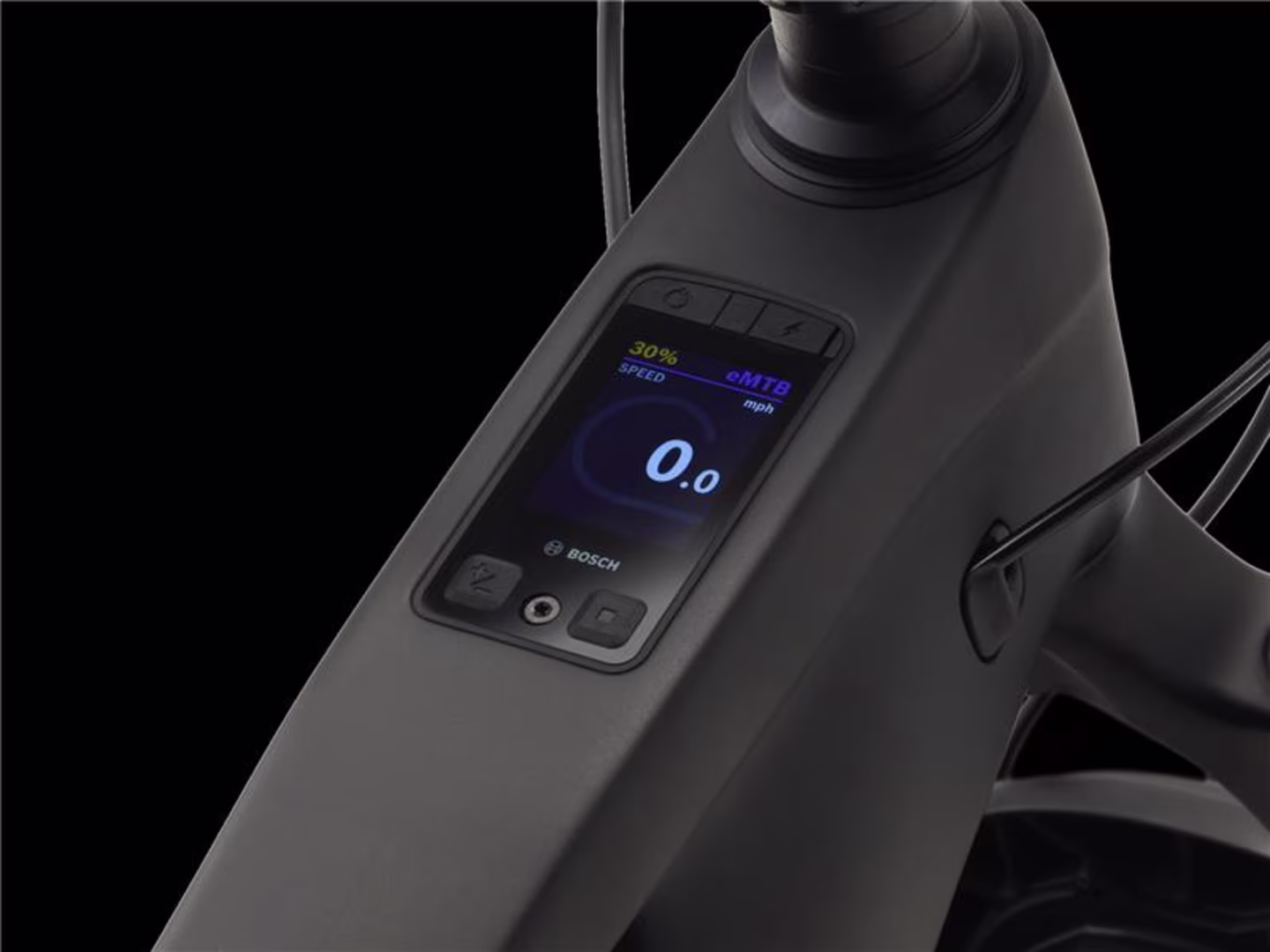

- Controller
-
Bosch System Controller BRC3100, smart system

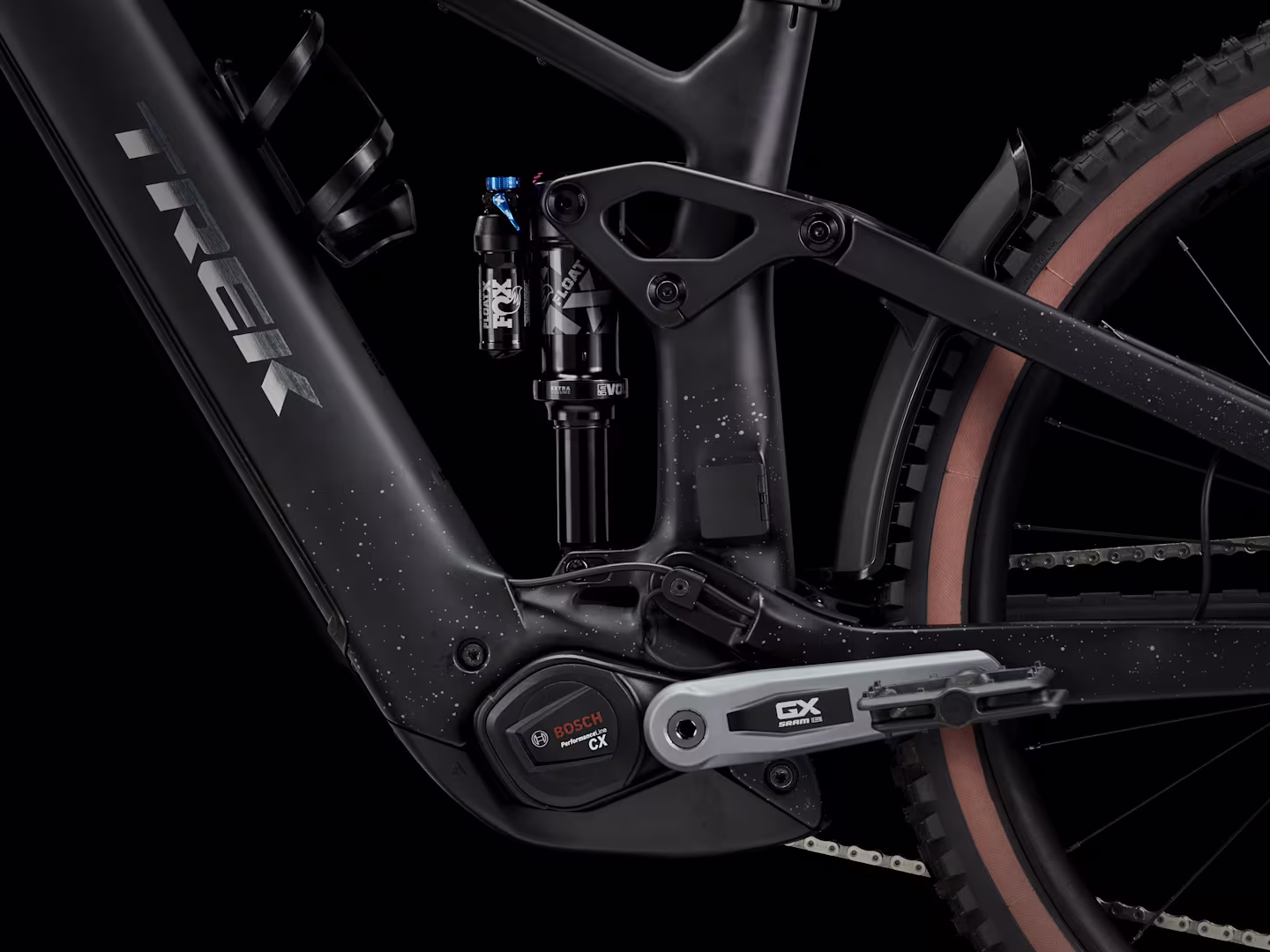

- Motor
-
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
- Shifter
-
SRAM AXS POD

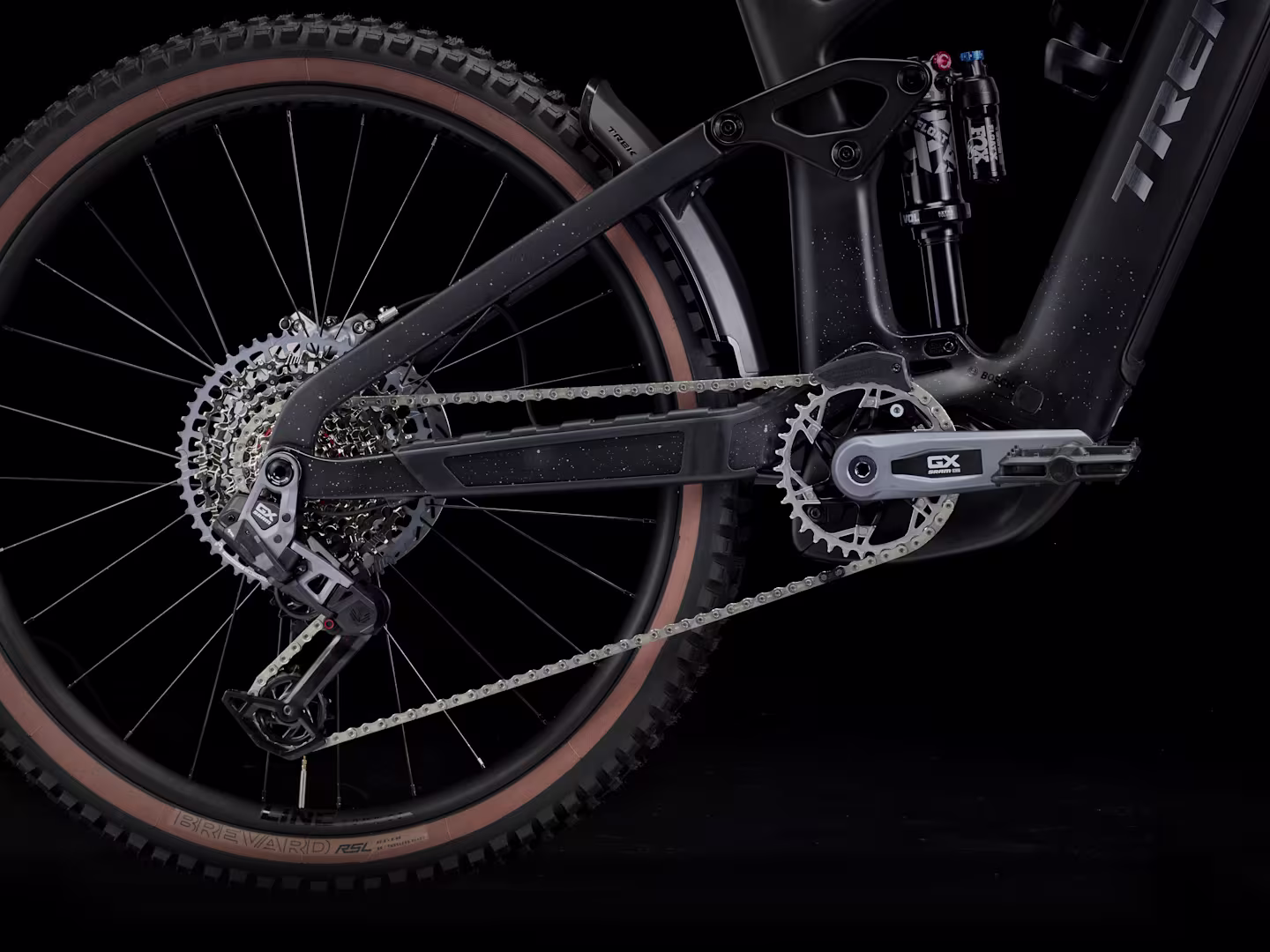

- Rear derailleur
-
SRAM GX Eagle AXS, T-Type
- Crank
-
SRAM GX, 160 mm length
- Chainring
-
SRAM T-Type, 34T, steel
- Cassette
-
SRAM Eagle XS-1275, T-Type,10-52, 12-speed
- Chain
-
SRAM GX Eagle, T-Type, 12-speed
- Pedal
- Max. chainring size
- 1x: 36T
- Saddle
-
Verse Short Comp, steel rails, 145 mm width
- *Seatpost
-
Size: M, L, XL
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm lengthSize: L, XL

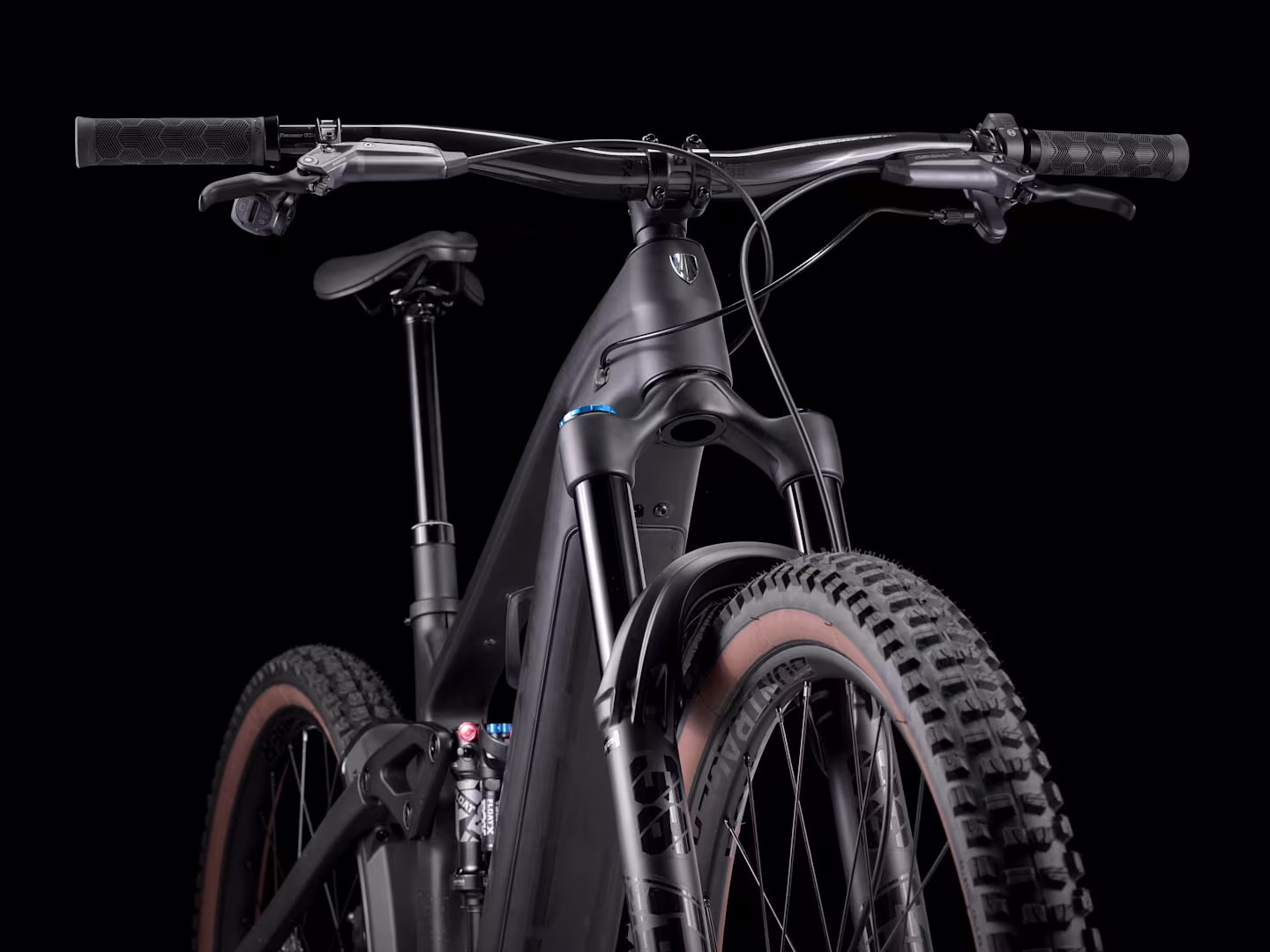

Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length - Handlebar
-
Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
- Grips
- Stem
-
Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
- Head set
- Brake
-
SRAM CODE Bronze 4-piston hydraulic disc
- *Brake rotor
-
Size: S, M, L, XL
SRAM HS2, 6-bolt, 200mmSize: S, M, L, XL
SRAM HS2, 6-bolt, 220mm - Rotor size
- Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
- Mudguard
- Weight
- M – 24.18 kg/53.31 lb (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
