TREK Checkpoint+ SL 7 AXS (2027)
TREK Checkpoint+ SL 7 AXS (2027) - Image 2
TREK Checkpoint+ SL 7 AXS (2027) - Image 3
TREK Checkpoint+ SL 7 AXS (2027) - Image 4
TREK Checkpoint+ SL 7 AXS (2027) - Image 5

TREK Checkpoint+ SL 7 AXS (2027)

R145 000.00

1X12 AXS

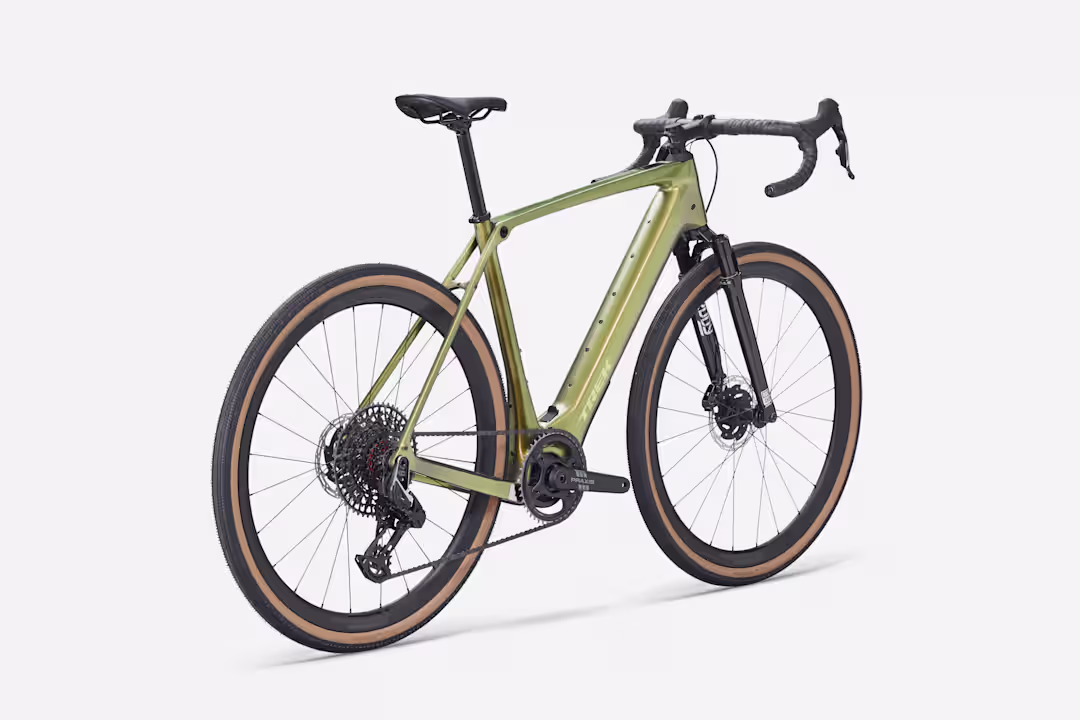

The Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most wide-ranging adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth and quiet boost up to 28 mph, while a 40 mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM’s Force AXS 12-speed drivetrain delivers smooth, wireless shifting and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seat post damp vibrations while keeping the weight down.

SKU: S,M,ML,L,XL,. Categories: , , ,

Description

FRAME:
500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat-mount disc, mudguard mounts, UDH, 142×12 mm chamfered thru axle
FORK:
RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12×100 mm thru axle, 40 mm travel

WEIGHT:
ML – 14.05 kg/30.98 lb (with TLR sealant, no tubes)
WEIHGT LIMIT:
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

BATTERY:
TQ 360Wh
CHARGER:
TQ 4A charger
CONTROLLER:
TQ color LED display with Bluetooth & ANT+ connectivity

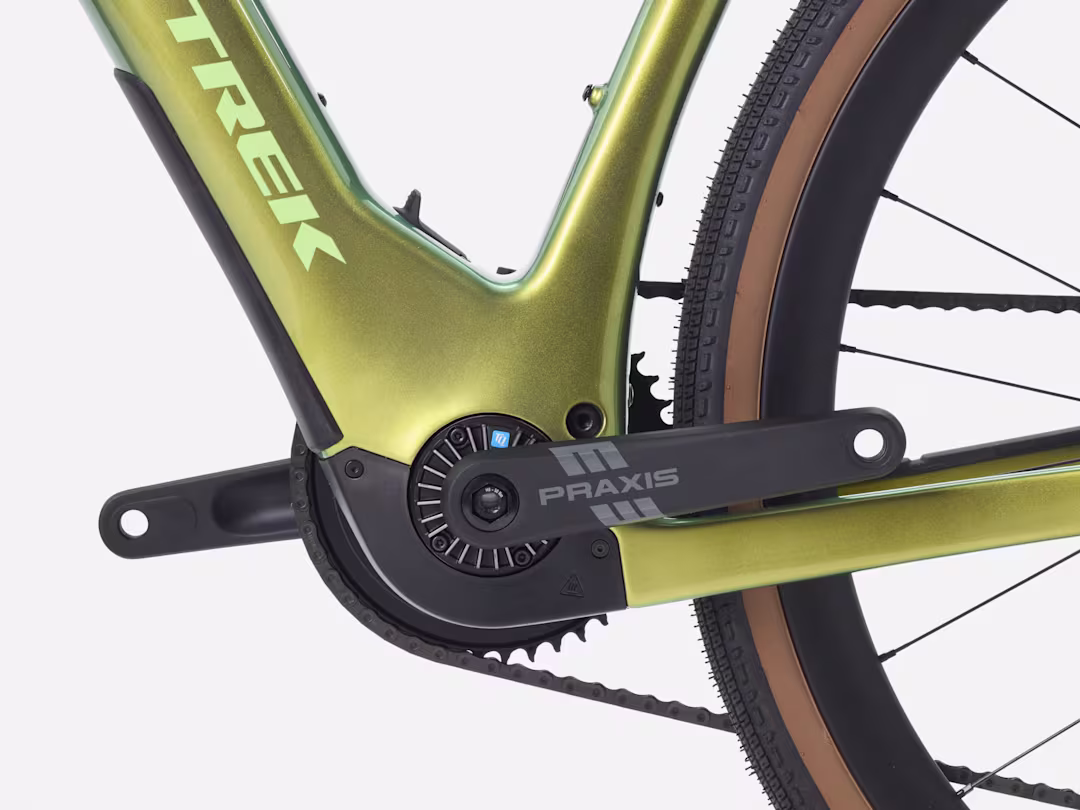

MOTOR:
TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
E-BIKE CLASSIFICATION:
Class 3

SHIFTER:
SRAM Force AXS E1
REAR DERAILLEUR:
SRAM X0 Eagle AXS, T-Type
CRANK:

Size: S

Praxis Alloy, 165 mm length

Size: M, ML

Praxis Alloy, 170 mm length

Size: L, XL

Praxis Alloy, 172.5 mm length
CASETTE:
SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
CHAIN:
SRAM X0 Eagle, T-Type, 12-speed
MAX CHAINRING SIZE:
1x: 44T

WHEEL FRONT:
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100×12 mm thru axle
WHEEL REAR:
Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142×12 mm thru axle
SKEWER REAR:
Bontrager Switch chamfered thru axle, removable lever
TYRE:
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700×42 mm
TYRE PART:
Bontrager TLR sealant, 180 ml/6 oz
RIM STRIP:
Bontrager TLR
MAX TYRE SIZE:
50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)

SADDLE:
Verse Short Elite, hollow magnesium rails, 145 mm width
SEATPOST:
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
HANDLEBAR:
Size: S
Bontrager Pro Gravel, 40 cm width
Size: M, ML
Bontrager Pro Gravel, 42 cm width
Size: L
Bontrager Pro Gravel, 44 cm width
Size: XL
Bontrager Pro Gravel, 46 cm width
HANDLEBAR TAPE:
Bontrager Supertack Perf tape
STEM:

Size: S, M

Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length

Size: ML, L

Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length

Size: XL

Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
BRAKE ROTOR:
SRAM Paceline X, rounded, CentreLock, 160 mm
ROTOR SIZE:
Max brake rotor sizes: 180 mm front and rear

Additional information

SIZE:

S, M, ML, L, XL
