TREK Checkpoint SL 5 AXS Gen 3 (2027)

R75 000.00

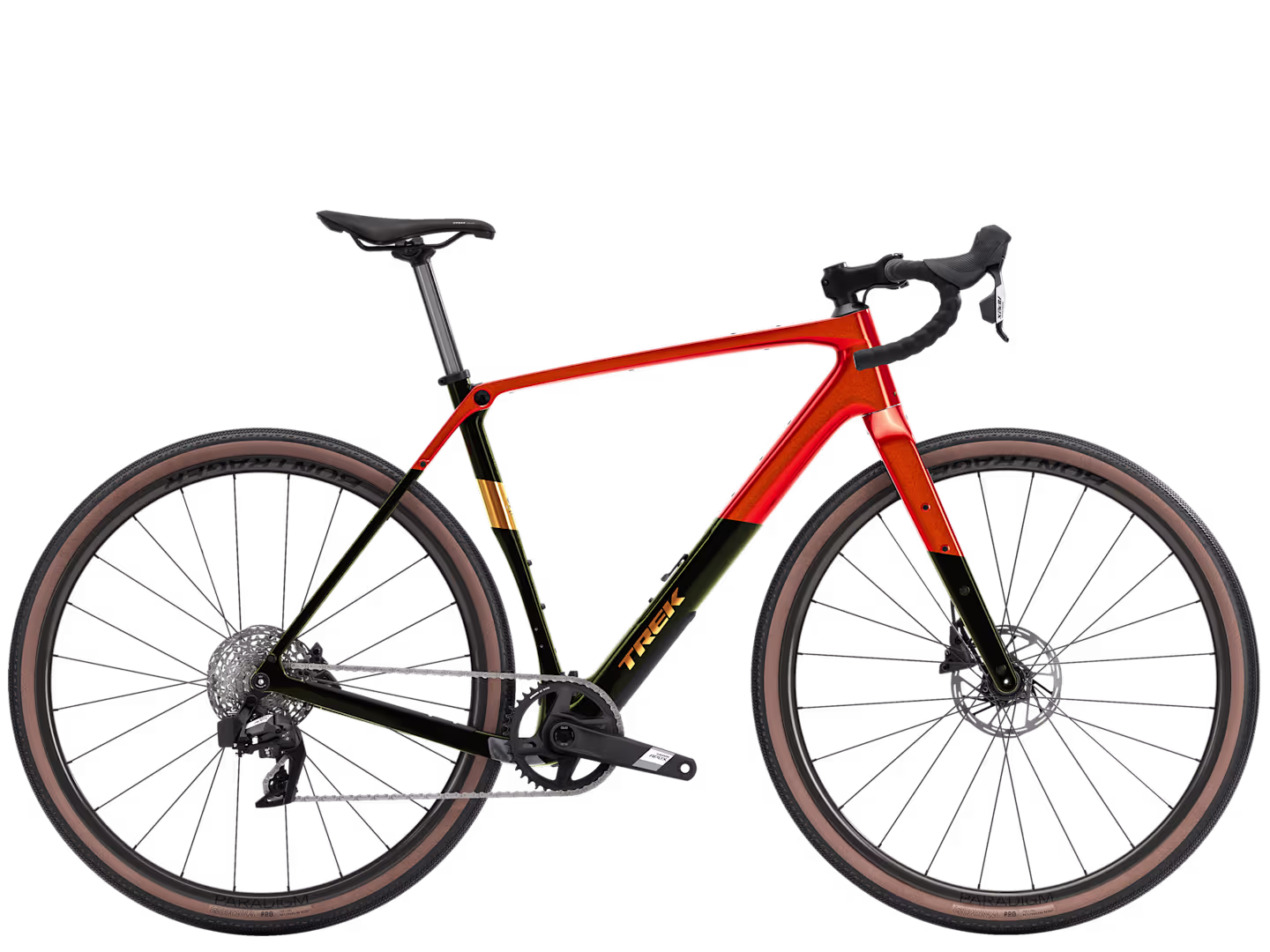

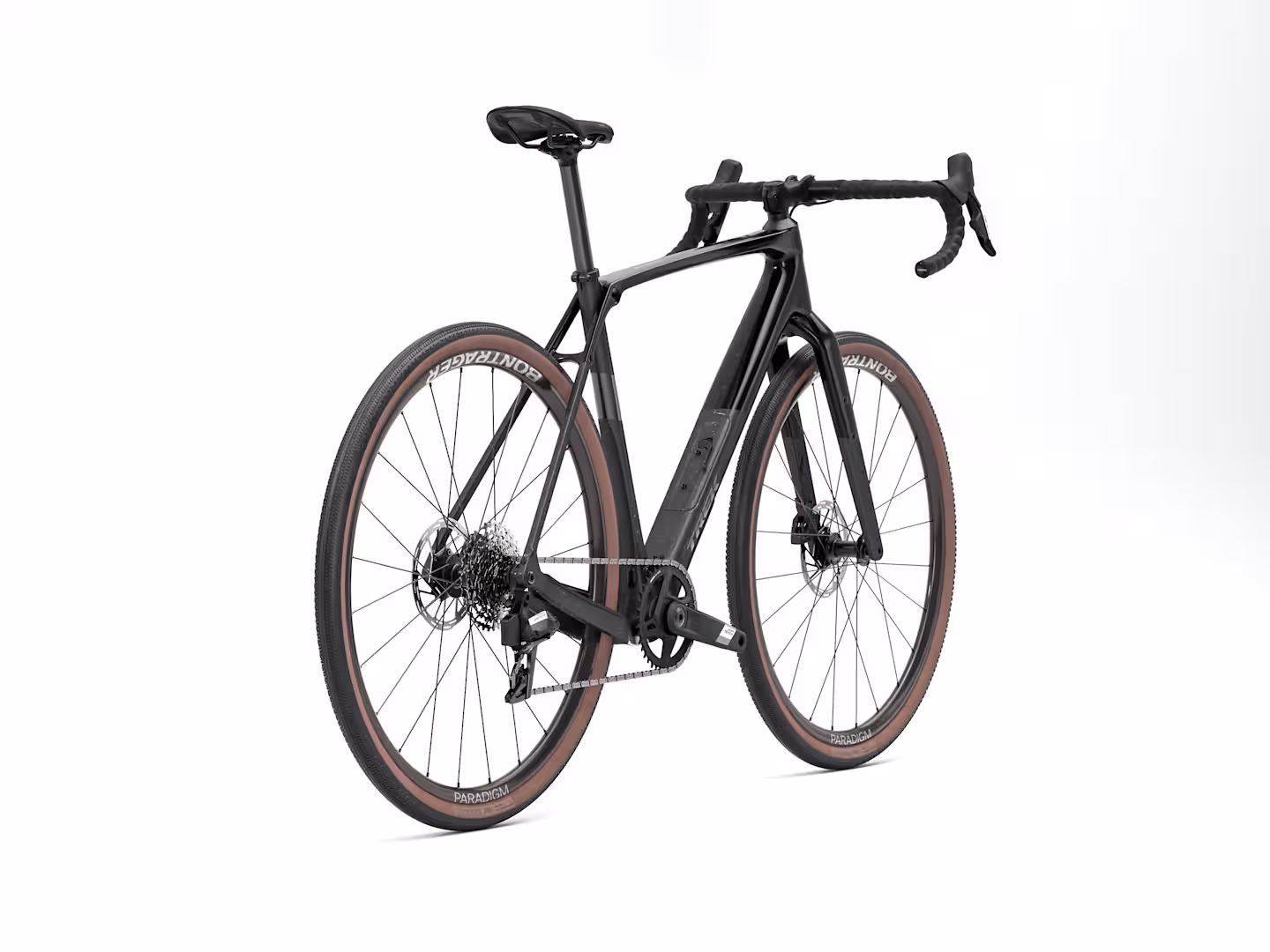

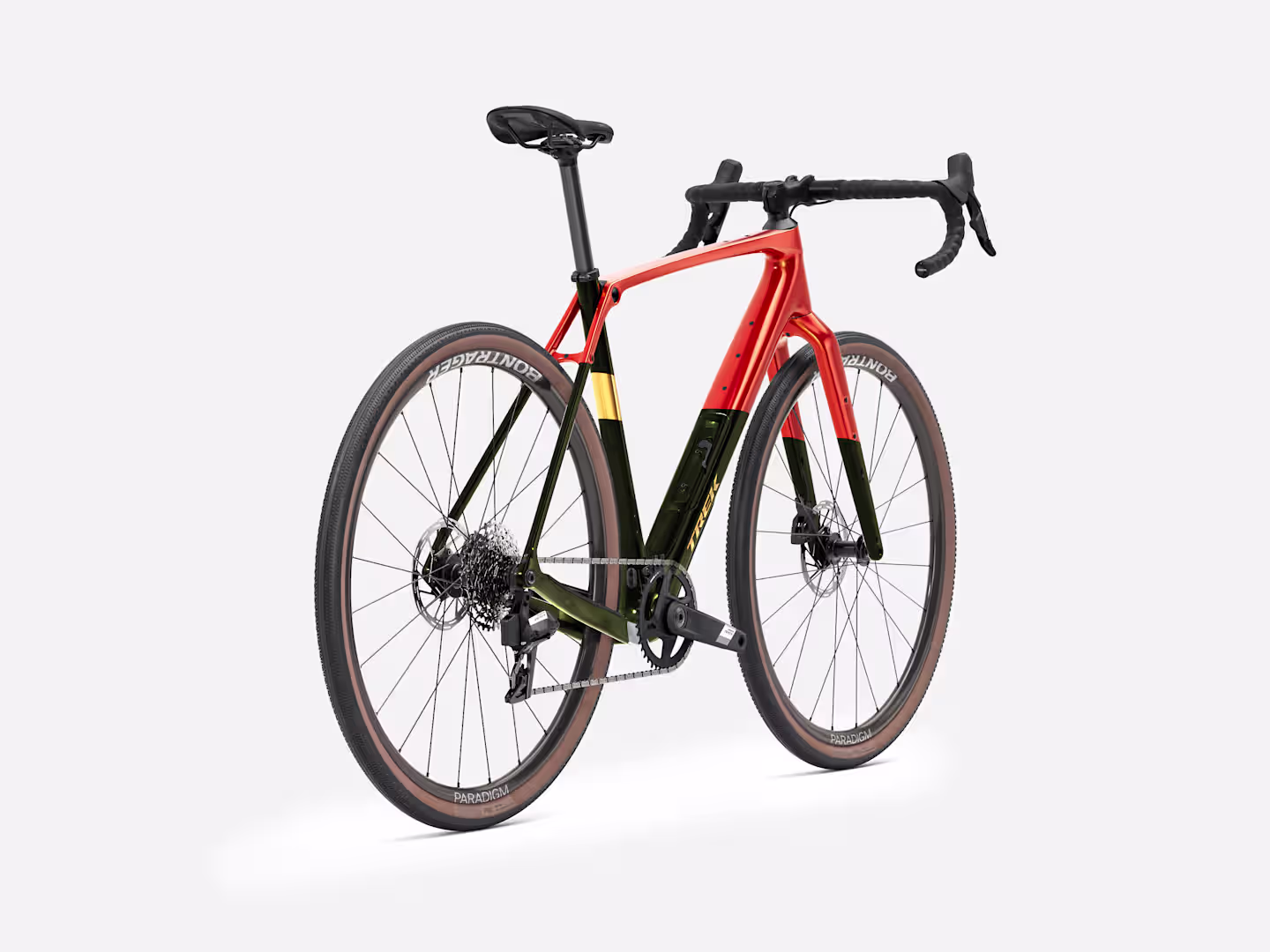

The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon. Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, so you can you float over chatter and potholes. It comes equipped with a wireless SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.

SKU: GRYS - XS,S,ML,L,XL / LAVA - XS,S,M,ML,L,XL Categories: , ,

Description

Frame

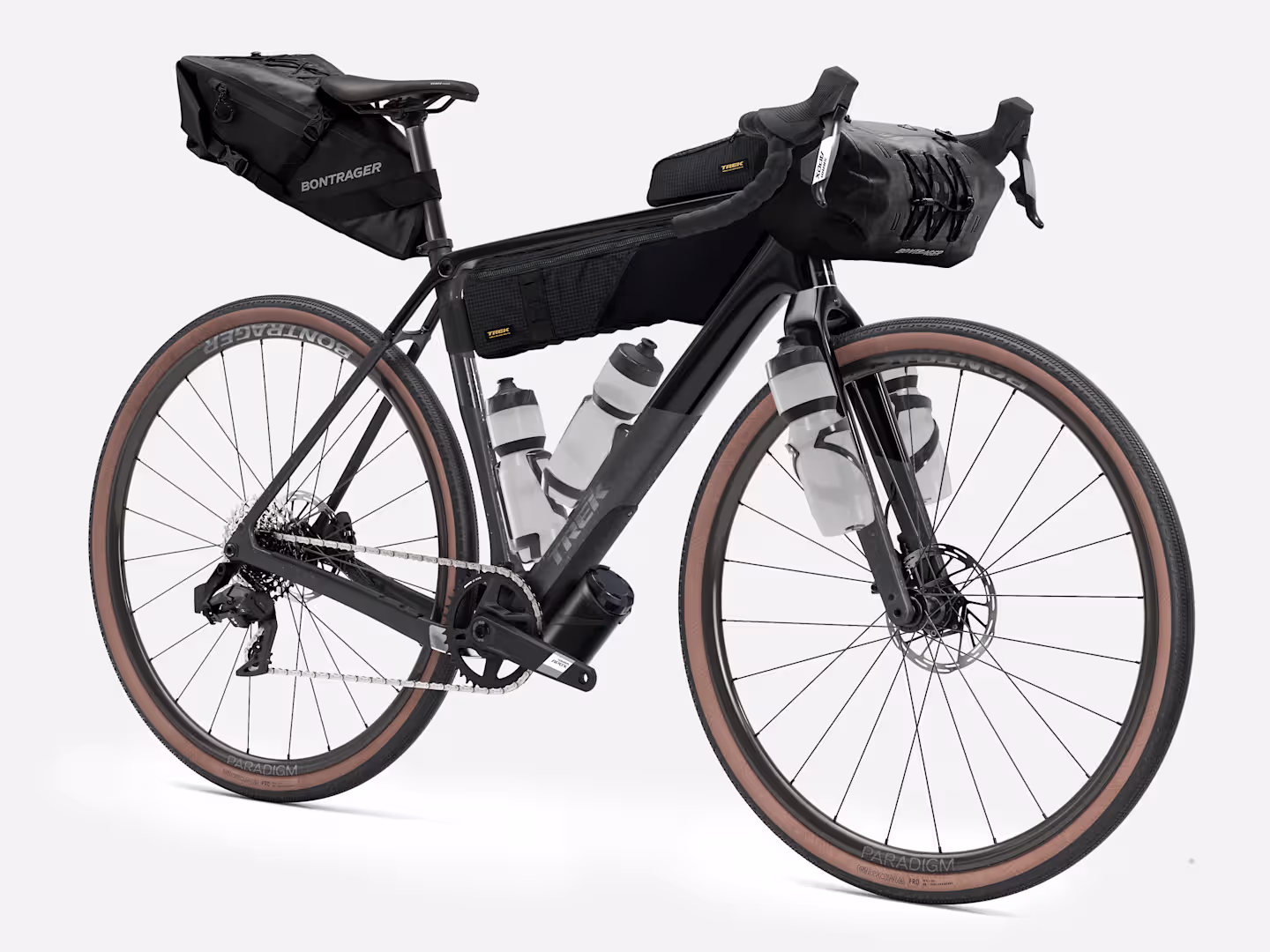

500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142×12 mm chamfered thru axle
Fork

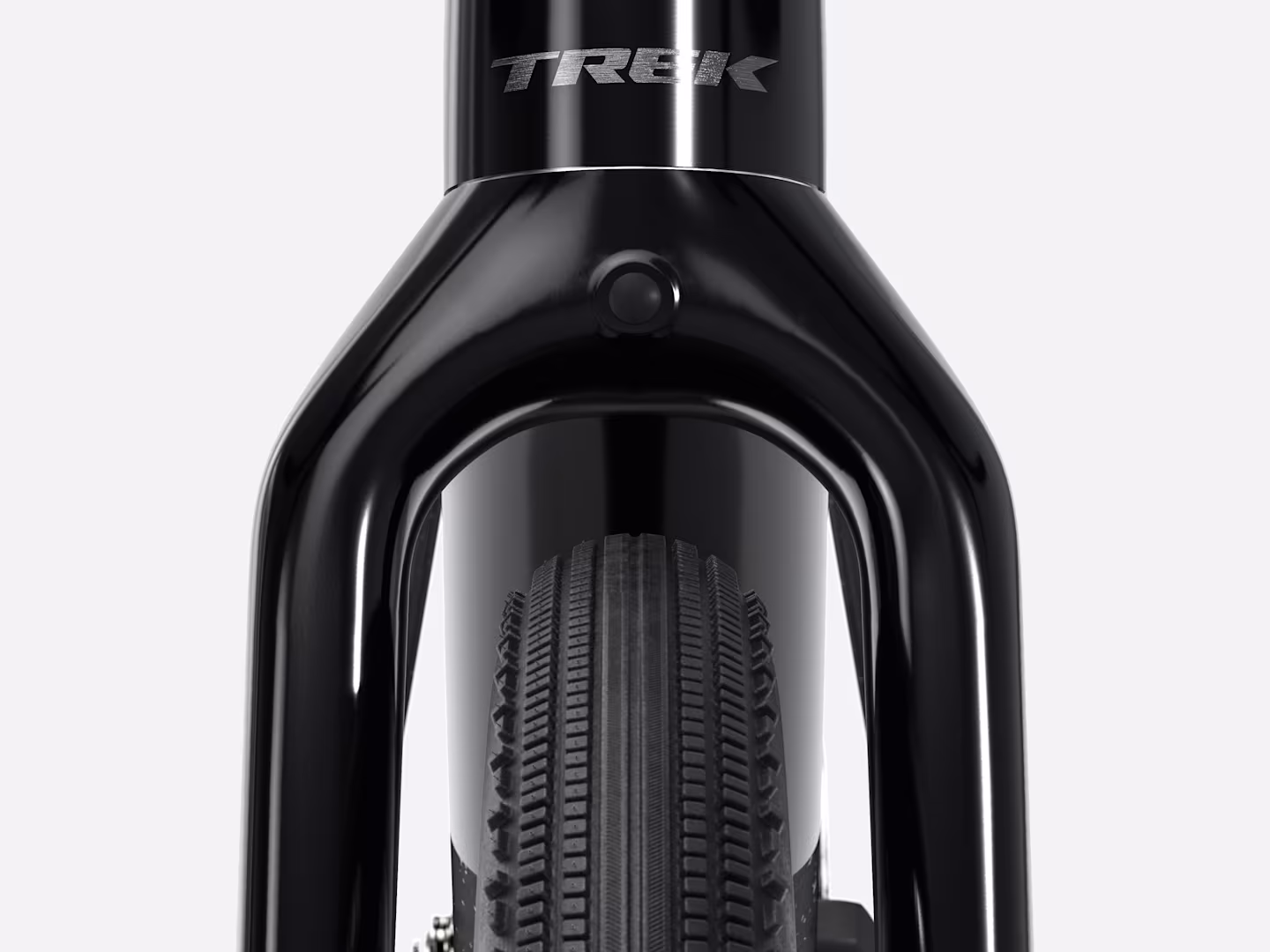

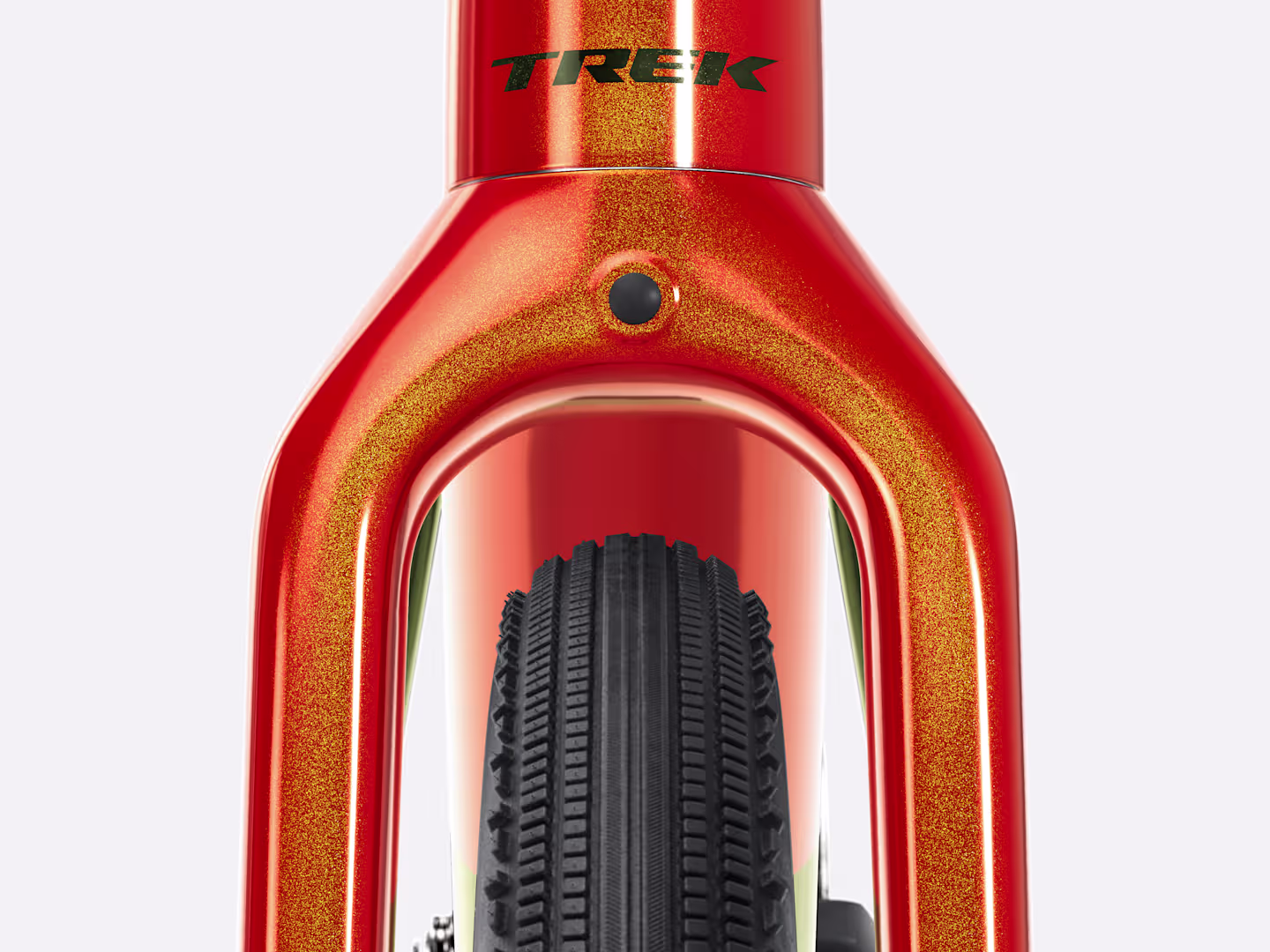

Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12×100 mm chamfered thru axle

Weight
ML – 9.50 kg/20.95 lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery
SRAM AXS battery pack (with charger)

Shifter
SRAM Apex AXS, 12-speed

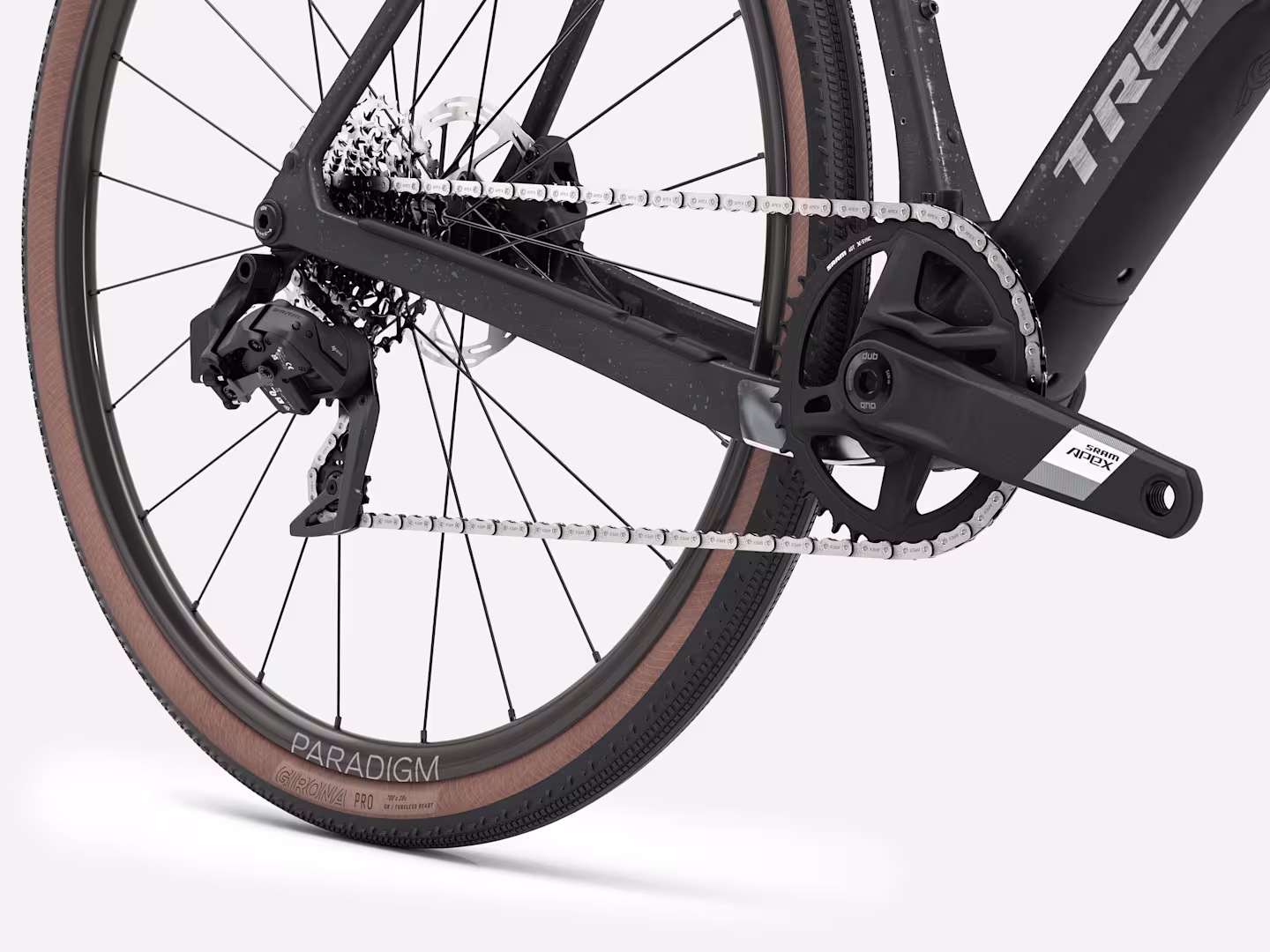

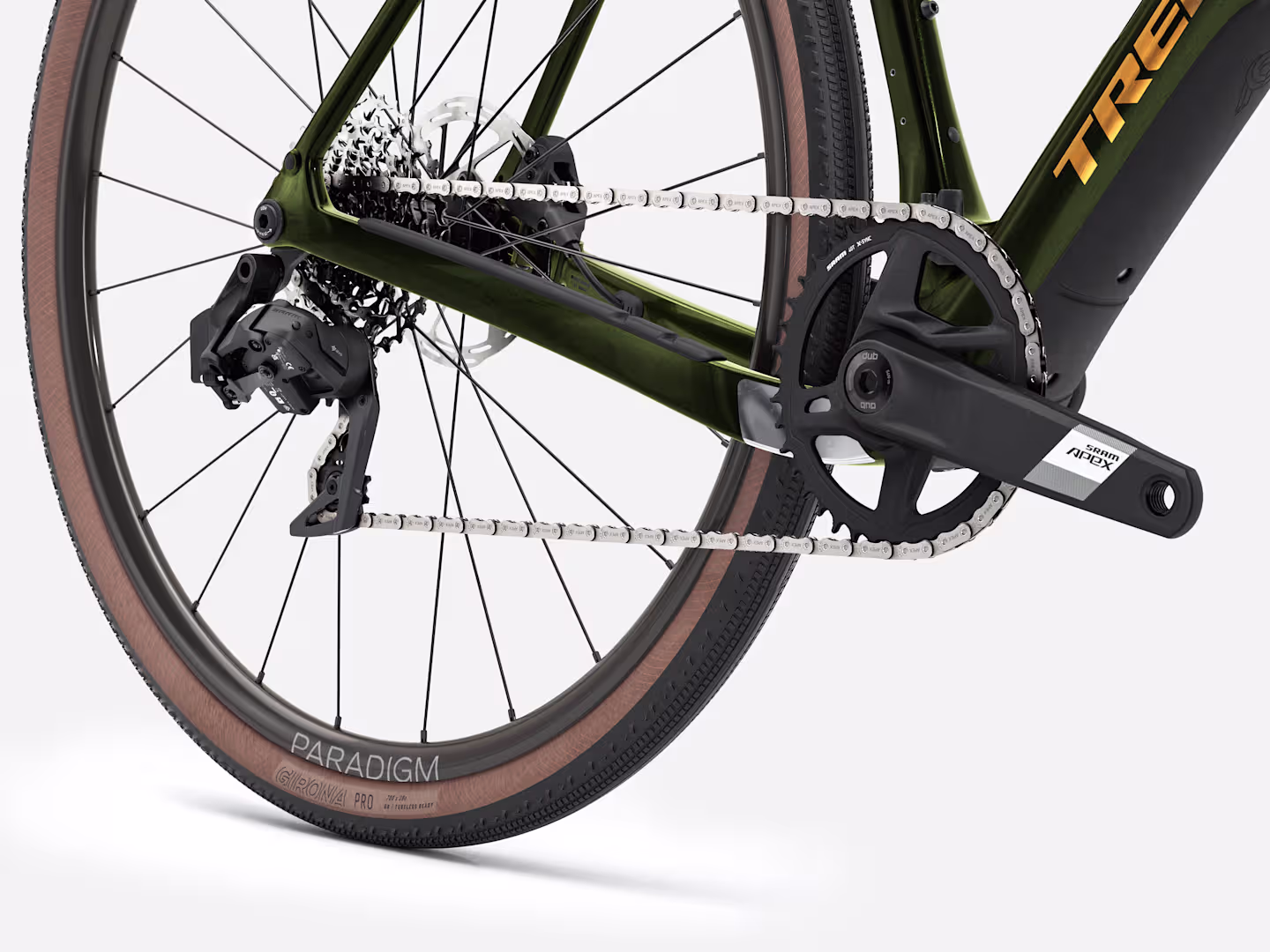

Rear derailleur
SRAM Apex XPLR eTap AXS, 44T max cog
*Crank

Size: XS, S

SRAM Apex 1, 40T, DUB Wide, 165 mm length

Size: M

SRAM Apex 1, 40T, DUB Wide, 170 mm length

Size: ML, L

SRAM Apex 1, 40T, DUB Wide, 172.5 mm length

Size: XL

SRAM Apex 1, 40T, DUB Wide, 175 mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM XPLR PG-1231, 11-44, 12-speed
Chain
SRAM Apex, 12-speed
Max. chainring size
1x:44 2x: 46/30

*Saddle

Size: XS, S

Verse Short Comp, steel rails, 155 mm width

Size: M, ML, L, XL

Verse Short Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

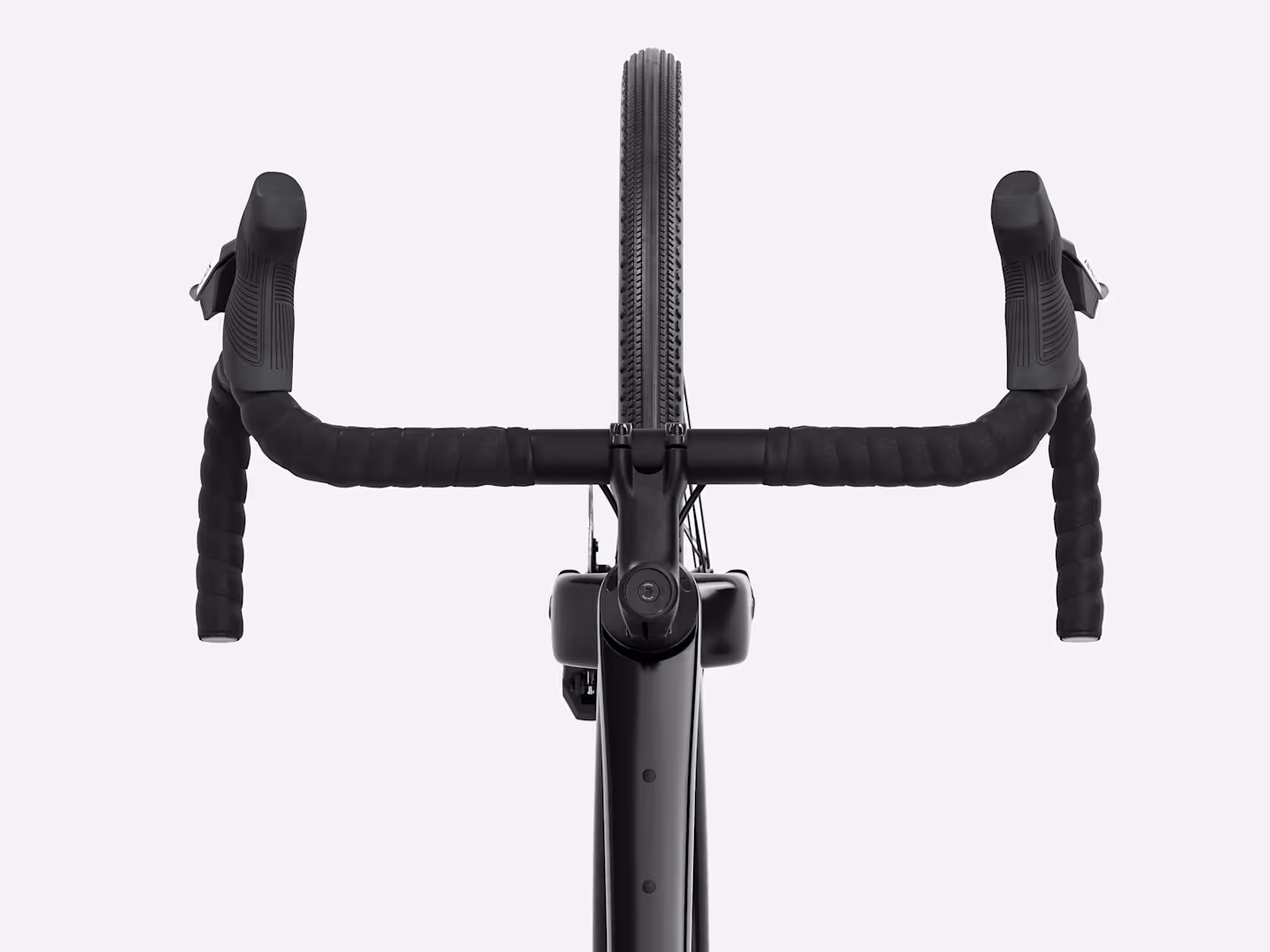

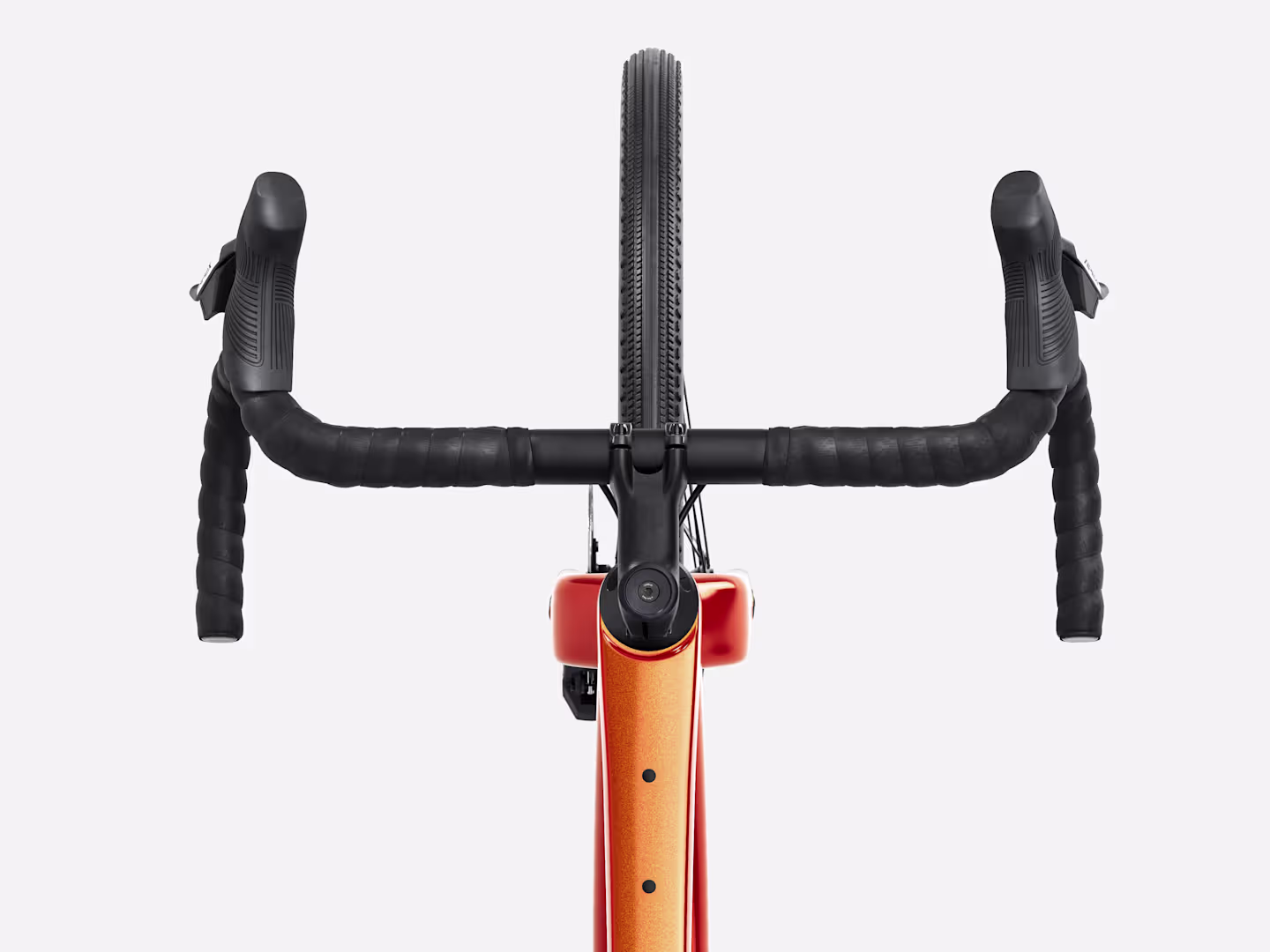

*Handlebar

Size: XS

Bontrager Elite Gravel, alloy, 40 cm width

Size: S, M

Bontrager Elite Gravel, alloy, 42 cm width

Size: ML, L

Bontrager Elite Gravel, alloy, 44 cm width

Size: XL

Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tape
Bontrager Supertack Perf tape
*Stem

Size: XS

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length

Size: S

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length

Size: M, ML

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor
SRAM Paceline, rounded, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front and rear

Additional information

COLOR:

GREY, LAVA-OLIVE
SIZE:

XS, S, M, ML, L, XL
