TREK Checkpoint+ SL 5 (2027)

R105 000.00

12SPD

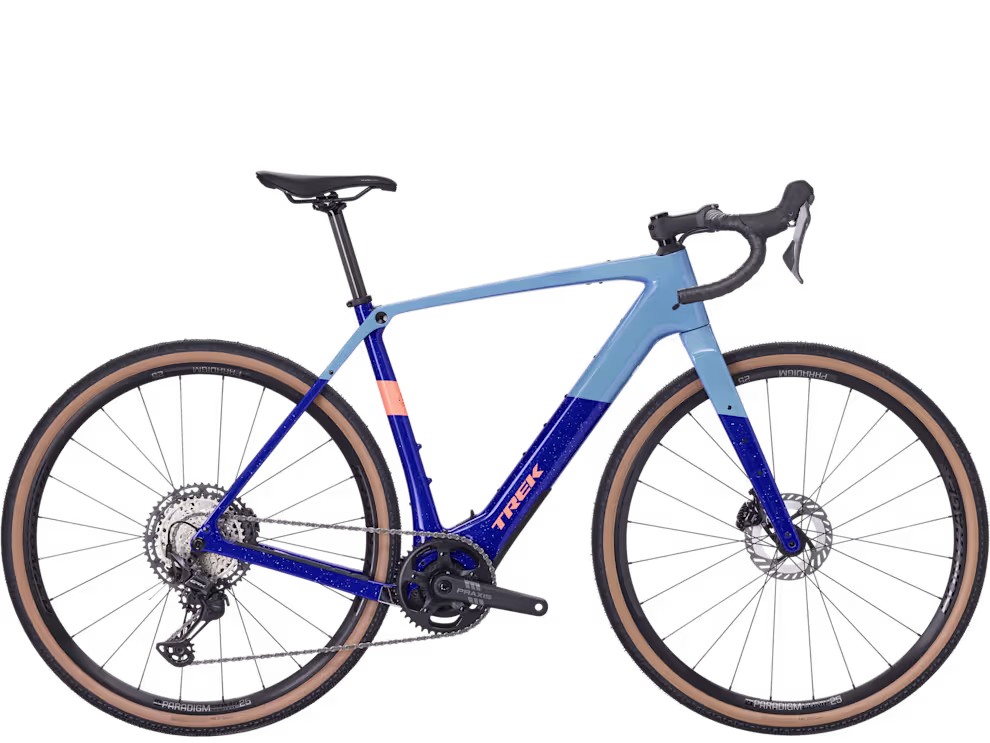

The Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost up to 28 mph (25 kph in Europe) and a 360 Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting and endurance geometry to keep you comfortable for the long haul.

SKU: BLUE - XS,S,M,ML,LXL / BRONZE - XS,S,M,ML,L,XL Categories: , , ,

Description

Frame
500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat-mount disc, mudguard mounts, UDH, 142×12 mm chamfered thru axle
Fork
Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12×100 mm chamfered thru axle

Weight
ML – 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery
TQ 360Wh
Charger
TQ 4A charger
Controller
TQ color LED display with Bluetooth & ANT+ connectivity
Motor
TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
E-bike Classification
Class 3

Shifter
Shimano GRX RX820, 12-speed
Rear derailleur
Shimano GRX RX822, 51T max cog

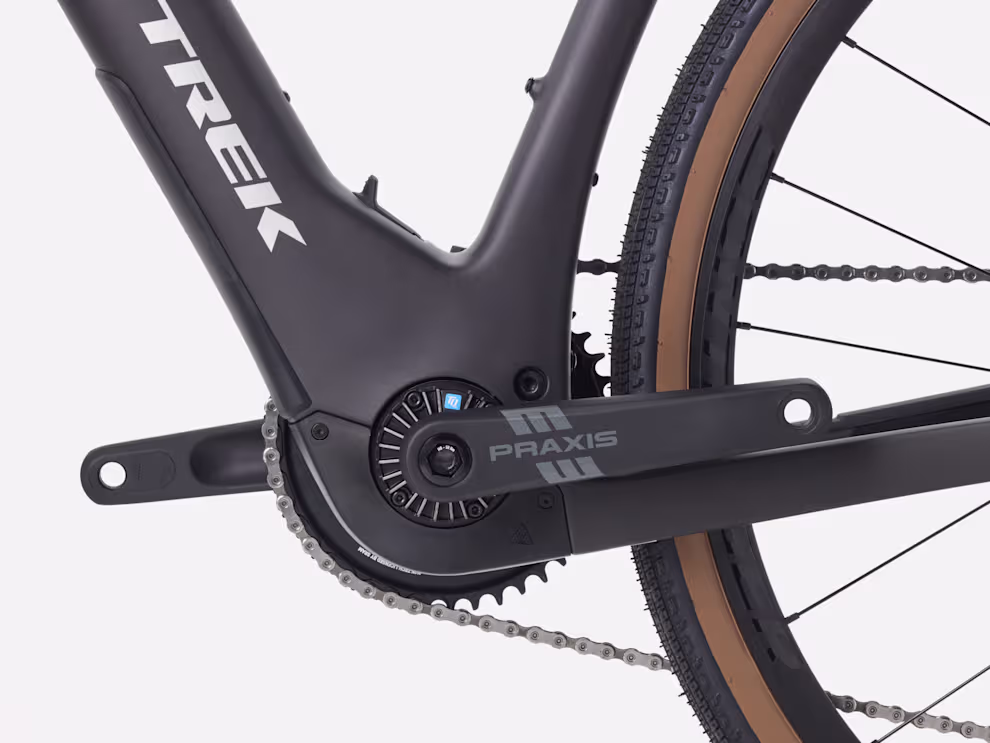

*Crank

Size: XS, S

Praxis Alloy, 165 mm length

Size: M, ML

Praxis Alloy, 170 mm length

Size: L, XL

Praxis Alloy, 172.5 mm length
*Cassette

Size: XS, S, M, ML, L, XL

Shimano XT M8100, 10-51, 12-speed

Size: XS, S, M, ML, L, XL

Shimano XT M8200, 10-51, 12-speed
Chain
Shimano XT M8100, 12-speed
Max. chainring size
1x: 44T

Wheel front

Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100×12 mm thru axle

Wheel rear

Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width, Shimano Micro Spline freehub, 142×12 thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700×42 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)

Saddle

Verse Short Comp, steel rails, 145 mm width

Seatpost

Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

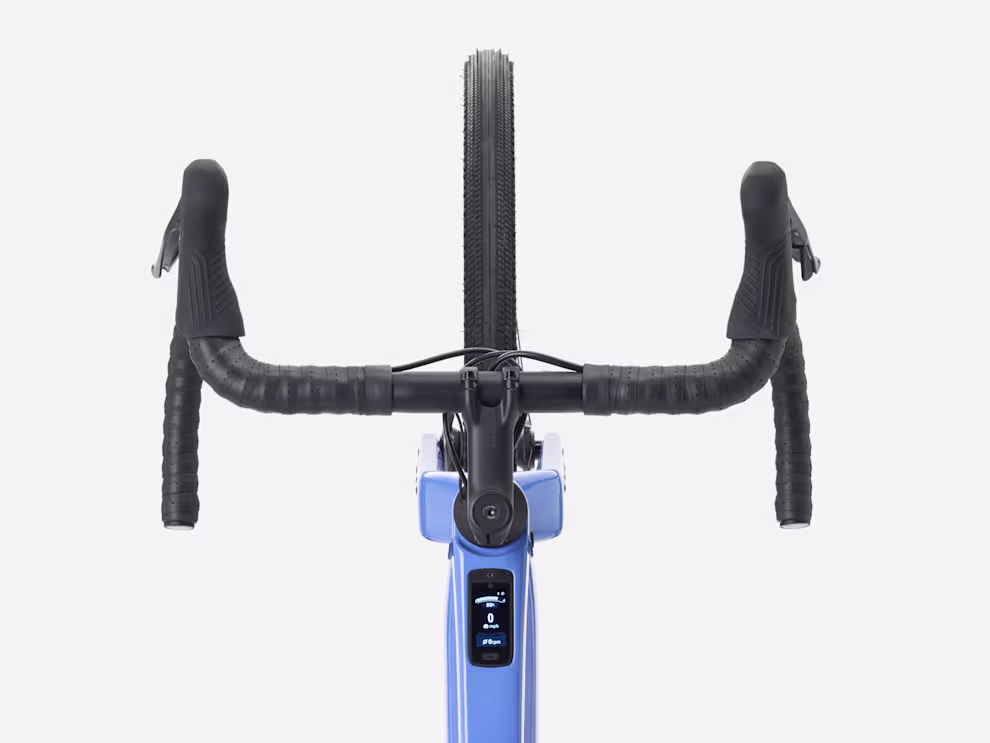

*Handlebar

Size: XS, S
Bontrager Elite Gravel, alloy, 40 cm width
Size: M, ML
Bontrager Elite Gravel, alloy, 42 cm width
Size: L
Bontrager Elite Gravel, alloy, 44 cm width
Size: XL
Bontrager Elite Gravel, alloy, 46 cm width

Handlebar tape

Bontrager Supertack Perf tape
*Stem
Size: XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: S, M
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: ML, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor
Shimano CL800, CentreLock, 160 mm
Brake lever
Shimano GRX RX820, 12-speed
Rotor size
Max brake rotor sizes: 180 mm front and rear

Additional information

COLOR:

BLUE, BRONZE
SIZE:

XS, SML, MED, ML, LG, XL
