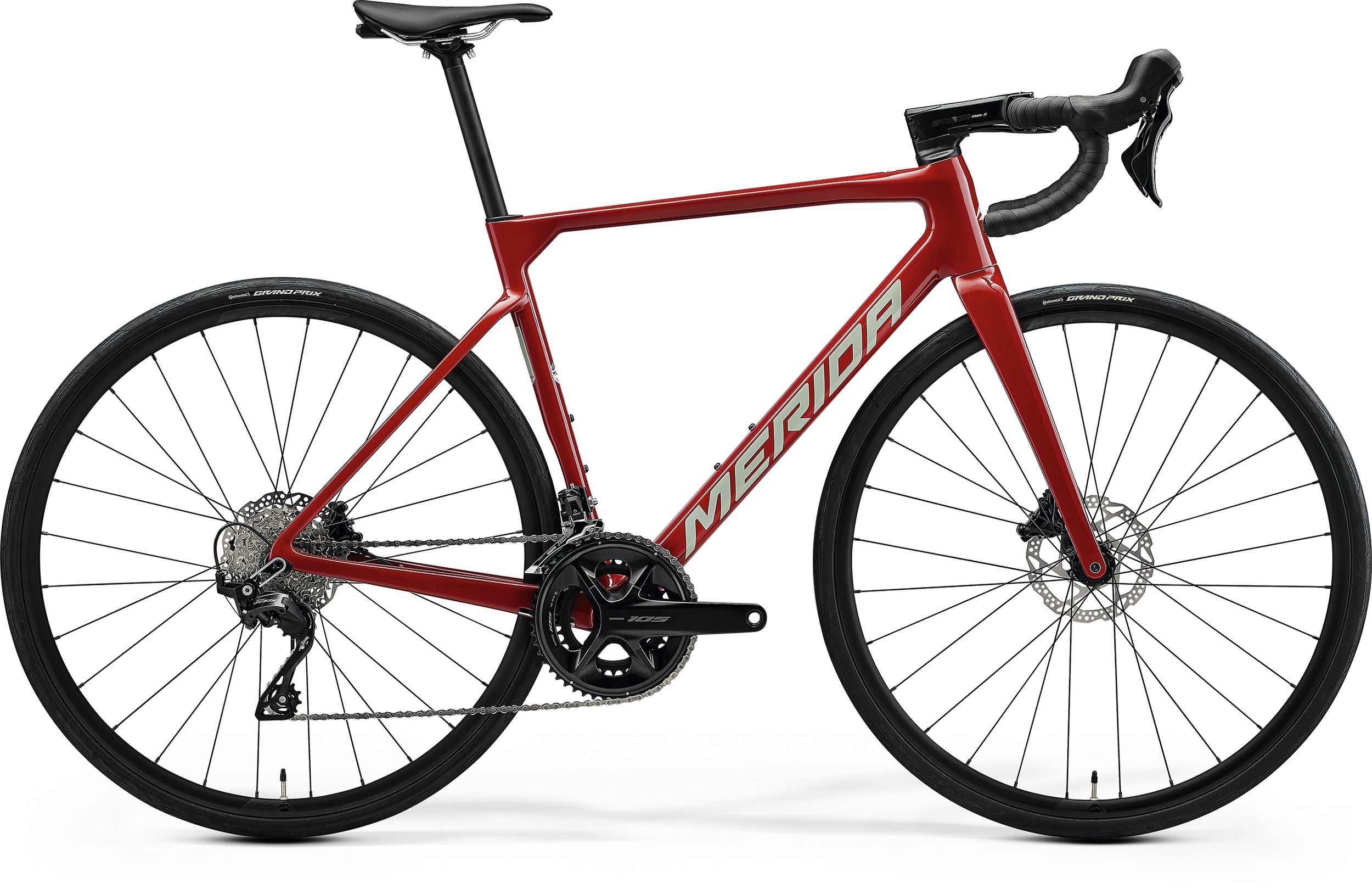

MERIDA SCULTURA 4000 (2026)

MERIDA SCULTURA 4000 (2026)

Original price was: R48 000.00.Current price is: R44 599.00.

Our entry model into the SCULTURA frame family. Based on our lightweight CF3 frame featuring the same race-proven geometry as our REACTO and a solid componentry package. Our 4000 is light, aerodynamically efficient and super comfortable.

2X12

SKU: S,M,L,XL.... Categories: , ,

Description

Specifications

FRAME:  SCULTURA CF3 V
  • material: carbon
  • 700x30C max. wheelsize
  • 100×12/ 142x12mm axle standard
  • Pressfit 86,5
COLOR:   HERITAGE RED (GREY)
FORK:  MERIDA SCULTURA CF3 disc
  • material: carbon
  • 700x30C max. wheelsize
BRAKES:   Shimano 105
  • Disc
ROTORS:  Shimano RT54
  • 160mm
BRAKE LEVER:   Shimano 105
HEADSET:   FSA ACR NO.55R
HANDLEBAR:  MERIDA EXPERT SL II
  • material: aluminium
  • 380mm (3S-XXS-XS-S)
  • 400mm (M-L)
  • 420mm (XL)
HANDLEBAR STEM:   FSA SMR-II
  • material: aluminium
  • -10°
  • 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)
GRIP:   MERIDA ROAD EXPERT
DERAILLEUR FRONT:   Shimano 105
DERAILLEUR REAR:   Shimano 105
  • GS
SHIFTERS:  Shimano 105 disc
SEAT POST:   MERIDA EXPERT SL
  • 27.2mm diameter
  • 0mm setback
  • Carbon
SEAT CLAMP:   MERIDA EXPERT
SADDLE:  MERIDA EXPERT SL
  • 6% recycled and 23% nature material
  • V-mount
  • incl. MERIDA minitool
CHAIN:   Shimano M6100-12
CRANK:  Shimano 105 R7100
  • 50-34 teeth
  • 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
FREEWHEEL:   Shimano 105 R7101
  • 11-34 teeth
  • 12 speed
BOTTOM BRACKET:   Shimano SM-BB71-41B
  • Pressfit 86.5
HUBS:  Shimano TC500 / Shimano TC500-HL
  • 100x12mm width front hub
  • 28 spoke holes
  • Centerlock
  • 12x142mm width rear hub
  • 28 spoke holes
  • Centerlock
RIM:   MERIDA EXPERT SL
  • 17mm inner width
  • 22mm height
  • material: aluminium
  • Tubeless ready (tubeless tape and valves not included)
TYRE FRONT:   Continental Grand Prix
  • 700x28C
  • fold *
TYRE REAR:   Continental Grand Prix
  • 700x28C
  • fold *
AXLES:  MERIDA EXPERT SL
  • including removable lever
  • 6/4mm allen key
SPOKES:   Double Butted Black stainless
APPROX WEIGHT:   8.5 kg

weighed at frame size M

MAX WEIGHT:  120 kg

Additional information

SIZE:

XS, S, M, L, XL
