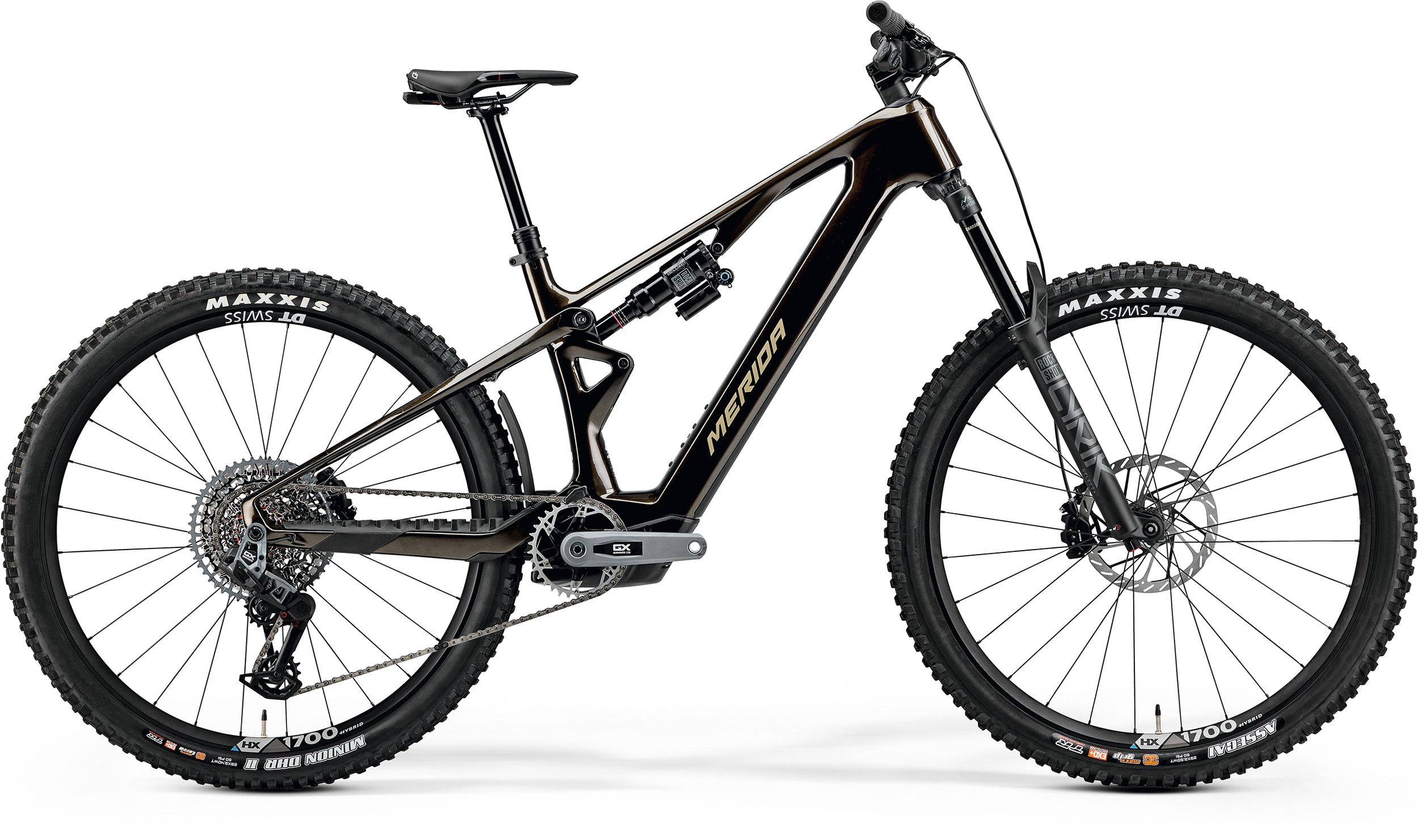

FRAME: eONE-SIXTY SL CF4 I
- material: carbon
- 160mm suspension travel
- 29×2,4″ max. wheelsize
- 148x12mm axle standard
- fixed battery
COLOR: GUARDED GOLD (CREAM)
FORK: Rock Shox Lyric Select+ eMTB
- Air
- 160mm suspension travel: Tapered
- 44mm fork offset
- 29×2.6″ max wheelsize
SHOCK: Rock Shox Super Deluxe Select+
- platform
BRAKES: Sram Maven Base
- 4 piston
ROTORS: Sram HS2
- 200mm
HEADSET: Acros ICR MERIDA INTEGRATED neck w/ Blocklock
HANDLEBAR: MERIDA EXPERT eTR
HANDLEBAR STEM: MERIDA EXPERT eTR II
GRIP: MERIDA EXPERT EC
DERAILLEUR REAR: Sram GX Eagle Transmission AXS
SHIFTERS: Sram dropper lever MMX / Sram AXS Pod Controller
SEAT POST: MERIDA COMP TR III
- 34.9mm diameter
- 0mm setback *
SEAT CLAMP: MERIDA EXPERT
SADDLE: Proxim Nembo
- V-mount adapter
- incl. MERIDA minitool
PEDAL: VP 532
CHAIN: Sram GX Eagle Transmission
- Flattop
CHAINWHEEL: Sram XX Eagle Transmission E-MTB for BOSCH
- 34 teeth
CRANK: Sram GX Eagle E-MTB Crank
- 165 mm for all sizes
FREEWHEEL: Sram XS-1275 T-TYPE
- 10-52 teeth
- 12 speed
WHEELSET: DT Swiss HX 1700
- 110x15mm width front hub
- 148x12mm width rear hub
- 30mm inner width
- 6-Bolt
- SRAM XD
- material: aluminium
- Tubeless ready (tubeless tape and valves included)
TYRE FRONT: Maxxis Assegai
- 29×2.5 “
- fold
- TR EXO+ 3C MaxxGrip
TYRE REAR: Maxxis Minion DHR II
- 29×2.4 “
- fold
- TR EXO+ 3C MaxxTerra
AXLES: MERIDA EXPERT TR
- including removeable lever, 6/4mm allen key
LIGHT FRONT: USB rechargable Chance Good CG-119PG-BLACK(1)
LIGHT REAR: USB rechargable Chance Good CG-404RG-BLK
FENDER: RF-001 mini fender
DRIVE UNIT: Bosch Performance Line SX
BATTERY: Bosch CompactTube
- 400Wh
DISPLAY: Bosch Kiox 400C
APPROX WEIGHT: 20.5 kg
weighed at frame size M
MAX WEIGHT: 140 kg
