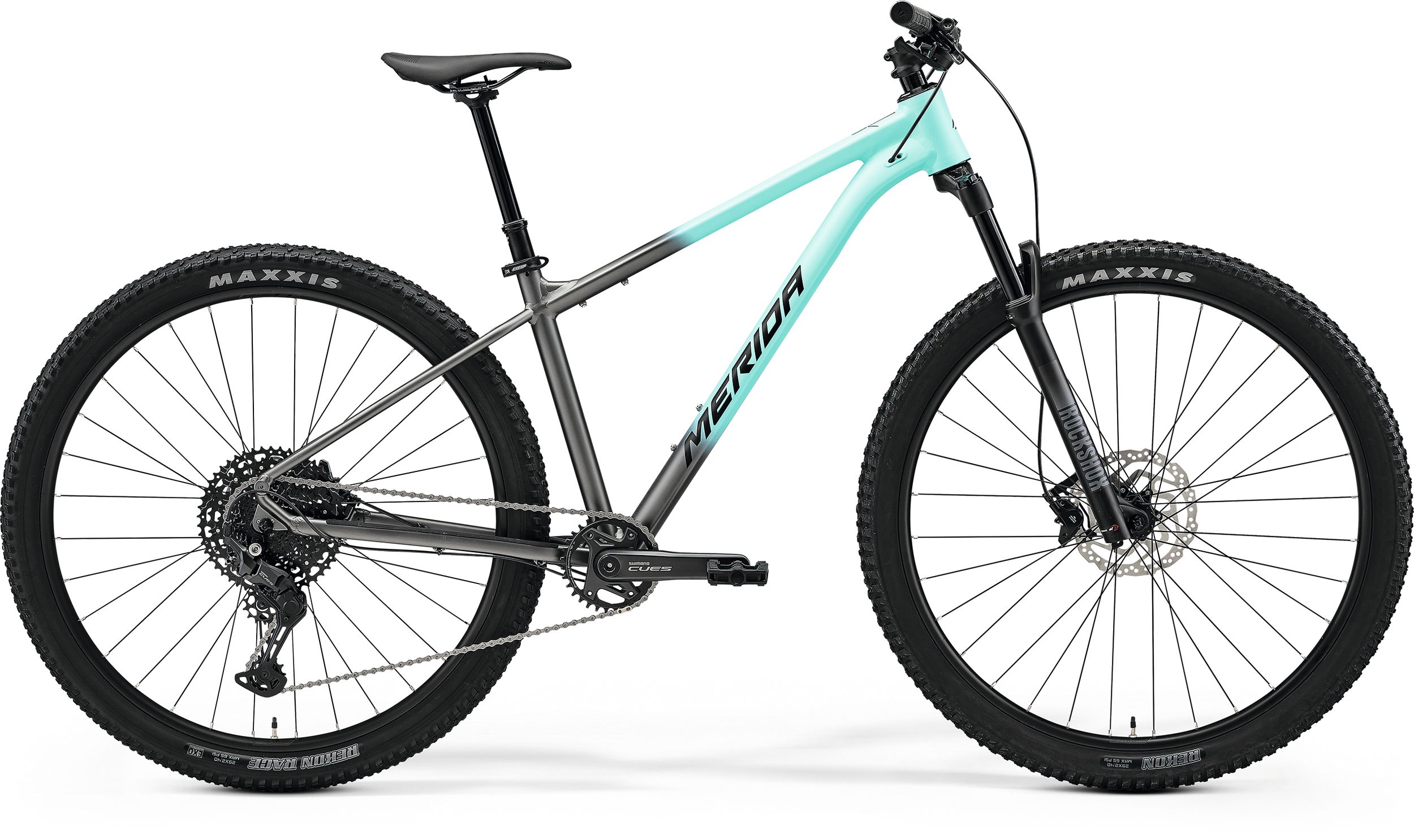

FRAME: BIG.NINE TFS V
- material: aluminum
- 29 wheelsize
- 135x9mm axle standard
- BSA bottom bracket standard
- Smooth welding
COLOR: SILK TEAL/GUNMETAL GREY (BLACK)
FORK: Rock Shox Judy Gold RL
- Air
- 120mm suspension travel
- Tapered
- Lockout
- 51mm fork offset
BRAKES: Shimano M4100
- 2 piston
ROTORS: Shimano RT10
- 180mm
- 160mm
HEADSET: FSA NO.55R/57
HANDLEBAR: MERIDA EXPERT CC
HANDLEBAR STEM: MERIDA COMP CC
GRIP: MERIDA COMP TR
DERAILLEUR REAR: Shimano CUES U6000
- GS
SHIFTERS: Shimano SL-MT500-IL / Shimano CUES U6000
SEAT POST: MERIDA COMP TR IV
- 30.9mm diameter
- 0mm setback
- travel seatpost S: 125mm, M/L: 150mm, XL/XXL 175mm
SEAT CLAMP: MERIDA COMP QR
SADDLE: MERIDA COMP SL
- V-mount
PEDAL: VP VPE-891
CHAIN: KMC xGlide
CRANK: Shimano CUES U6000
- 32 teeth
- 170mm for all sizes
FREEWHEEL: SunRace 10-50t ZX11
- CS-UX700 EA5
- 10-50 teeth
- 11 speed
- Linkglide
BOTTOM BRACKET: Shimano MT500
HUBS: Shimano QC300 / Shimano QC300-HM
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
RIM: MERIDA COMP CC II
- 25mm inner width
- material: aluminium
- tubeless ready
TYRE FRONT: Maxxis Rekon Race
- 29×2.4″
TYRE REAR: Maxxis Rekon Race
- 29×2.4″
SPOKES: Black stainless
APPROX WEIGHT: 13.8 kg
weighed at frame size M
MAX WEIGHT: 135 kg
